convert

The convert command is the primary way to extract useful documentation from an OPNsense configuration backup. It parses the raw XML and produces structured output in your choice of format -- Markdown for human-readable reports, JSON or YAML for programmatic consumption, or HTML for self-contained sharing.

When to use it:

• Generating network documentation from a firewall config backup
• Exporting structured data for integration with other tools or dashboards
• Creating redacted reports safe for sharing with vendors or consultants
• Batch-processing multiple configs for fleet-wide documentation

Usage

opndossier convert [flags] <config.xml> [config2.xml ...]

Flags

Flag	Short	Default	Description
--output	-o	stdout	Output file path
--format	-f	markdown	Output format: markdown (md), json, yaml (yml), text (txt), html (htm)
--force		false	Overwrite existing output file without prompt
--section		all	Comma-separated list of sections to include: system, network, firewall, services, security
--wrap		terminal width	Set text wrap width in columns
--no-wrap		false	Disable text wrapping
--comprehensive		false	Generate detailed comprehensive report
--include-tunables		false	Include system tunables (sysctl) in output
--redact		false	Redact sensitive fields (passwords, keys, community strings)
--device-type		auto-detect	Force device type instead of auto-detecting from XML root element

For global flags (--verbose, --quiet, --config, etc.), see Configuration Reference.

Device Types

By default, opnDossier auto-detects the device type from the XML root element of the configuration file. Currently, OPNsense (<opnsense>) is the built-in device type.

The --device-type flag overrides auto-detection, which is useful if a config file has an unexpected root element or if you want to explicitly specify the parser.

opndossier convert config.xml --device-type opnsense

opnDossier's device type system is extensible -- additional device types (e.g., pfSense, Fortinet) can be added via third-party parser plugins. Use opndossier convert --device-type <TAB> to see all available device types via shell completion. See the Plugin Development Guide for details on creating device parsers.

Sections

By default, all sections are included in the output. Use --section to limit output to specific areas of the configuration. This is useful when you only need to document or audit a particular domain -- for example, generating a firewall-only report for a security review.

opndossier convert config.xml --section firewall,network -o network-security.md

Section	What it covers
system	Hostname, domain, timezone, language, WebGUI settings, DNS configuration, users, groups, and system tunables
network	Interfaces (LAN, WAN, OPT), VLANs, bridges, GIFs, GREs, LAGGs, and per-interface details (IP, subnet, media, speed)
firewall	Firewall rules and policies
services	DHCP server (scopes, static leases, DHCPv6), DNS resolver (Unbound), SNMP, NTP, load balancer monitors
security	NAT configuration (inbound/outbound), IDS/Suricata, certificates

System Tunables

OPNsense allows administrators to set kernel-level parameters (sysctl values) that control low-level system behavior -- things like TCP buffer sizes, IP forwarding, and connection tracking limits. These are configured under System > Settings > Tunables in the OPNsense web interface.

By default, only security-related tunables (IP forwarding, TCP/UDP blackhole) are included in output. The --include-tunables flag adds all tunables -- including performance tuning, buffer sizes, and other kernel parameters:

opndossier convert config.xml --include-tunables -o full-report.md

When included, tunables appear as a table with three columns: the sysctl parameter name, its value, and its description.

Comprehensive Mode

By default, convert produces a baseline report covering the core sections: system settings, interfaces, firewall rules, NAT, and services. The --comprehensive flag generates a more detailed report that adds:

• VLAN configuration
• Static routes
• IPsec VPN configuration
• OpenVPN configuration
• High Availability / CARP
• All system tunables (comprehensive mode implies --include-tunables)

Use comprehensive mode when you need a complete picture of the device -- for example, when onboarding a new firewall, performing a full audit, or creating handover documentation.

opndossier convert config.xml --comprehensive -o full-documentation.md

Redacting Sensitive Data

The --redact flag replaces sensitive field values with [REDACTED] in the output. This lets you generate reports that are safe to share without exposing credentials or secrets.

Fields that are redacted:

• Passwords (HA sync password, user passwords)
• Private keys (certificates, certificate authorities)
• API key secrets
• SNMP community strings
• WireGuard pre-shared keys
• DHCPv6 key info secrets

# Generate a redacted report for sharing with a vendor
opndossier convert config.xml --redact -o report-for-vendor.md

# Combine with comprehensive for a full but safe report
opndossier convert config.xml --comprehensive --redact -o full-redacted.md

For full XML-level sanitization (replacing IPs, hostnames, and all identifying data), see the sanitize command instead.

Output Formats

Format	Aliases	Description
markdown	md	Markdown documentation (default)

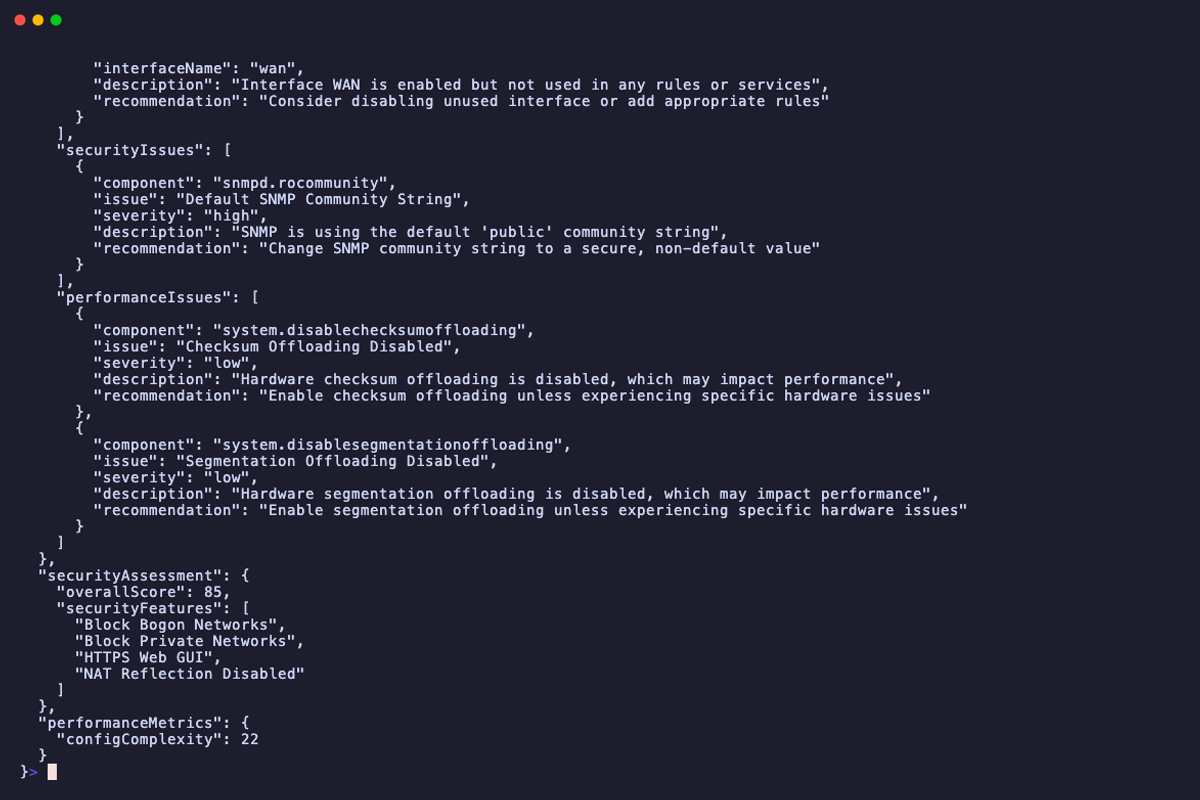

json		Structured JSON data
yaml	yml	Structured YAML data
text	txt	Plain text (markdown without formatting)
html	htm	Self-contained HTML report

Security Audits

Security auditing and compliance checks are handled by the dedicated audit command, not convert.

Supported audit modes:

Mode	Audience	Focus
blue	Blue Team	Defensive audit with security findings
red	Red Team	Attack surface and pivot points

Available compliance plugins in blue mode: stig, sans, firewall.

Multiple Files

When processing multiple files, the --output flag is ignored. Each output file is named based on its input file with the appropriate extension.

Examples

# Convert to markdown and save to file
opndossier convert config.xml -o documentation.md

# Convert to JSON with forced overwrite
opndossier convert config.xml -f json -o output.json --force

# Convert multiple files to JSON (auto-named outputs)
opndossier convert -f json config1.xml config2.xml

Related

• audit -- run security audits with compliance checks
• display -- render in terminal instead of writing to file
• validate -- check config correctness before converting
• Configuration Reference -- global flags and settings
